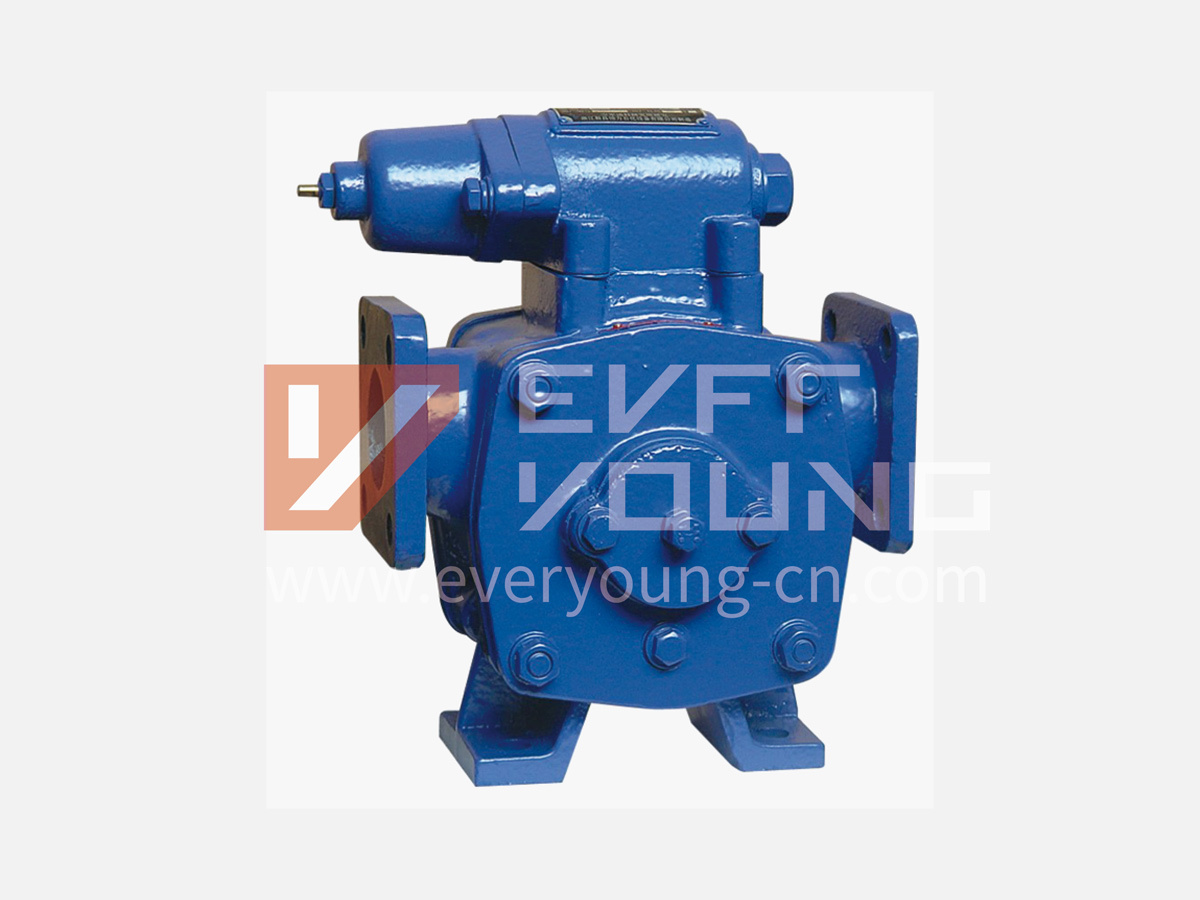

SUB Series Vane Pump
YPUMP-SUB40
| Model | YPUMP-SUB-40 |
| Inlet&outlet | 1.5" |
| Flow Rate | 180L/min |
| Vacumm | 0.06MPa |
| Speed | 1400RPM |
| KW | 1.5KW |
| Pressure | 6Bar |
| Package | 36x32x32cm |
| 25/20kgs |
- 技术参数
- 详细描述
-
- Commodity name: SUB Series Vane Pump
- Commodity ID: K-B006
- 产品型号: YPUMP-SUB40
- 参数:
SUB series vane pump
SUB-Series pump is positive displacement vane pump, applied to transfer gasoline, kerosene , diesel and other light oil, used to load & unload in stock terminal, also on oil tank trucks and mobile fuel unit.
Advantages
• An excellent self-priming performance, vacuum up 0.06MPa, instead of vacuum pump to clean the tank in vessel, truck, etc.
• To transport gas liquid two- phase, up to 50%, completely solve air lock, cavitation. Sliding vane design provides sustained performance and trouble free operation, high relibility.
• Adjustable reliefvalve protects pump from excessive pressure.Latest Showroom
-
Model YPUMP-SUB-40 Inlet&outlet 1.5" Flow Rate 180L/min Vacumm 0.06MPa Speed 1400RPM KW 1.5KW Pressure 6Bar Package 36x32x32cm 25/20kgs
SUB series vane pump
SUB-Series pump is positive displacement vane pump, applied to transfer gasoline, kerosene , diesel and other light oil, used to load & unload in stock terminal, also on oil tank trucks and mobile fuel unit.
Advantages
• An excellent self-priming performance, vacuum up 0.06MPa, instead of vacuum pump to clean the tank in vessel, truck, etc.
• To transport gas liquid two- phase, up to 50%, completely solve air lock, cavitation. Sliding vane design provides sustained performance and trouble free operation, high relibility.
• Adjustable reliefvalve protects pump from excessive pressure.
