200L 12V ADBLUE TANK
DESIGNED FOR THE STORAGE AND TRANSFER OF ADBLUE SOLUTION
TKA200-E
• 12V Power connection • Self priming pump, 35L/min flow rate • 4m of 3/4" delivery hose • 4m wiring harness with alligator clips • PVC Automatic nozzle • 30min duty cycle All Adblue equipment and dispensing units we supply are manufactured to ensure that the quality of Adblue is not compromised whilst providing a speedy transfer from tanks to vehicles.
- 技术参数
- 详细描述
-
- Commodity name: 200L 12V ADBLUE TANK
- Commodity ID: C-001
- 产品型号: TKA200-E
- 参数: • 12V Power connection • Self priming pump, 35L/min flow rate • 4m of 3/4" delivery hose • 4m wiring harness with alligator clips • PVC Automatic nozzle • 30min duty cycle All Adblue equipment and dispensing units we supply are manufactured to ensure that the quality of Adblue is not compromised whilst providing a speedy transfer from tanks to vehicles.
DESIGNED FOR THE STORAGE AND TRANSFER OF ADBLUE SOLUTION
ADBLUE TRANSFER TANK
The ADBLUE TANK Designed to meet the requirements for storage and transfer of Diesel exhaust fluid (DEF)/AU32 urea solution, commonly referred to by the trade names of Adblue, NoNox and Air1.
In Compliance With Eu Legislation, Many New Commercial Vehicles must run with a Selective Catalytic Reduction System(In Short SCR) .This Kind of system substantially reduces Nitrogen Oxide (NOX) emissions by converting them Into harmless nitrogen and water through the use of a special Catalytic Converter and a non-explosive, non-toxic, non-flammable, water -based urea solution, also called Adblue. This means that new trucks and buses have to be fitted with an Adblue tank as well as a fuel tank.
-

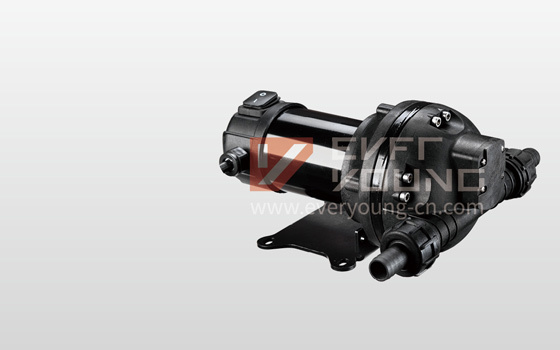

Yadblue-2 12V
Yadblue-3 24V
• 12V 260W
• EPDM MEMBRANE
• DUTY CYCLE 20min
• FLOW RATE 35 L/MIN
• MAX PRESSURE 1.5 BAR
• 2600RPM 22A
• HOSE TAIL CONNECTION 3/4"
• ON/OFF SWITCH
-

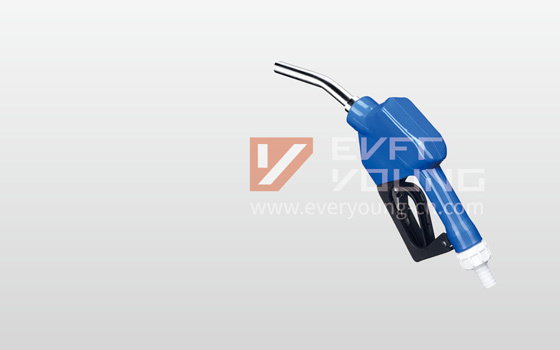

Yoilp-HG0005A
• PVC AUTOMATIC NOZZLE
• 3/4"
• 10/CTN 13/12KGS 42X34X40CM
-

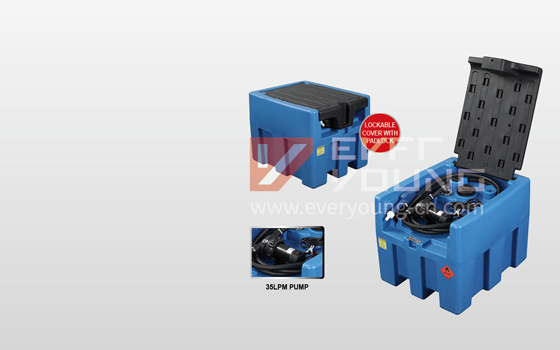

TKA200-E
200L 12V ADBLUE TANK
850mm*700mm*645mm
CODE DESCRIPTION OPEN FLOW LENGTH WIDTH HEIGHT WEIGHT(DRY) TKA200-E 200L Adblue tank 35L/min 850mm 700mm 645mm 26kg
ADBLUE TRANSFER TANK
The ADBLUE TANK Designed to meet the requirements for storage and transfer of Diesel exhaust fluid (DEF)/AU32 urea solution, commonly referred to by the trade names of Adblue, NoNox and Air1.
In Compliance With Eu Legislation, Many New Commercial Vehicles must run with a Selective Catalytic Reduction System(In Short SCR) .This Kind of system substantially reduces Nitrogen Oxide (NOX) emissions by converting them Into harmless nitrogen and water through the use of a special Catalytic Converter and a non-explosive, non-toxic, non-flammable, water -based urea solution, also called Adblue. This means that new trucks and buses have to be fitted with an Adblue tank as well as a fuel tank.
-
Yadblue-2 12V
Yadblue-3 24V
• 12V 260W
• EPDM MEMBRANE
• DUTY CYCLE 20min
• FLOW RATE 35 L/MIN
• MAX PRESSURE 1.5 BAR
• 2600RPM 22A
• HOSE TAIL CONNECTION 3/4"
• ON/OFF SWITCH -
Yoilp-HG0005A
• PVC AUTOMATIC NOZZLE
• 3/4"
• 10/CTN 13/12KGS 42X34X40CM -
TKA200-E
200L 12V ADBLUE TANK
850mm*700mm*645mm
| CODE | DESCRIPTION | OPEN FLOW | LENGTH | WIDTH | HEIGHT | WEIGHT(DRY) |
| TKA200-E | 200L Adblue tank | 35L/min | 850mm | 700mm | 645mm | 26kg |
