Aluminium Diesel Fuel Meter
Nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity.

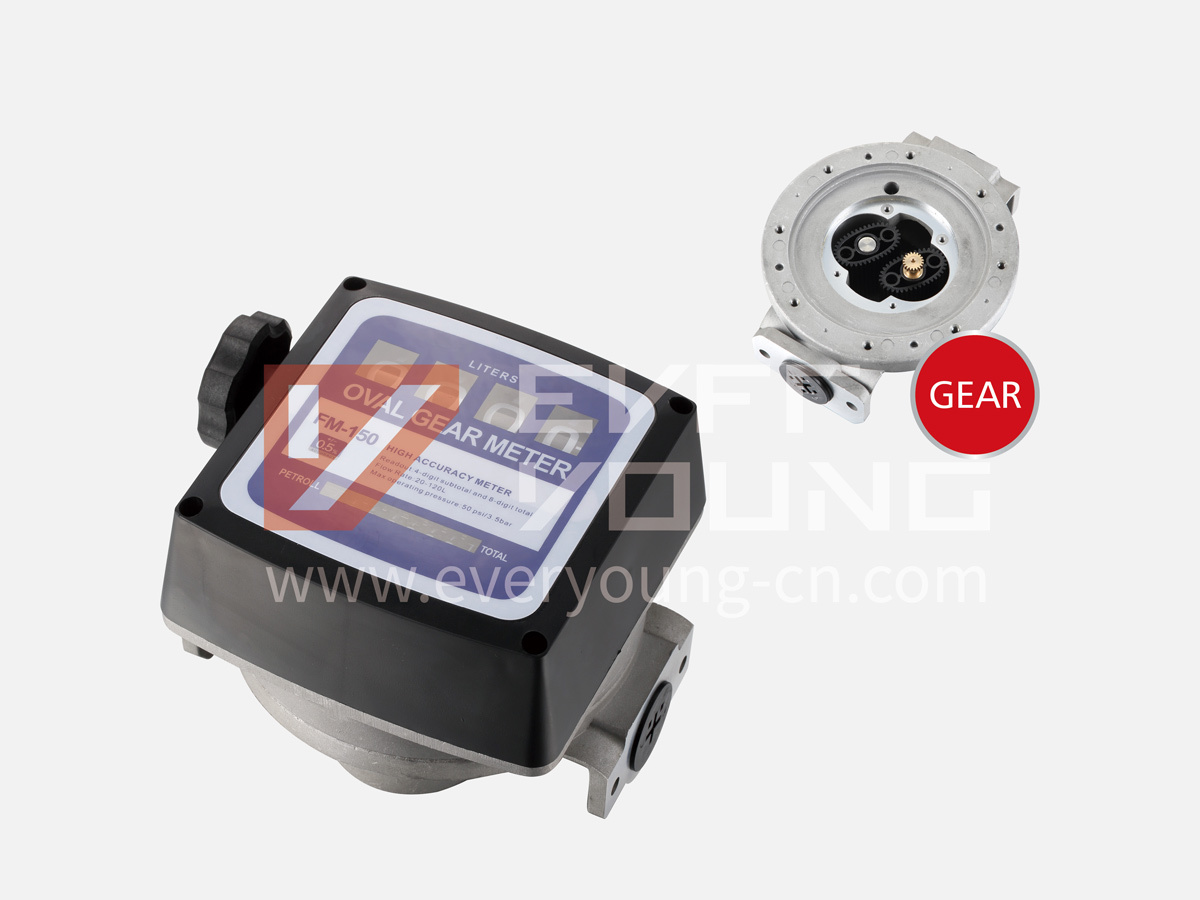

Yoilp1011-16 GEAR FLOW METER
• ALUMINIUM DIESEL METER • DIA.OF PIPE:1" • 4 DIGITAL • 6/CTN 16/15KGS 53X25X36CM
- 技术参数
- 详细描述
-
- Commodity name: Aluminium Diesel Fuel Meter
- Commodity ID: J-B002
- 产品型号: Yoilp1011-16 GEAR FLOW METER
- 参数: • ALUMINIUM DIESEL METER • DIA.OF PIPE:1" • 4 DIGITAL • 6/CTN 16/15KGS 53X25X36CM
Nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity.
Performance Specifications
• Flow-rate (range): 20-120l/min (5.3-32 gal/min).
• Repeatability: 0.2%.
• Max. operating pressure: 10 bar (145 psi).
• Bursting pressure: 30 bar (435 psi).
• Resolution: 0.1 litre.
• Pulser card type: “Open collector", frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 mA.Latest Showroom
Performance Specifications
• Flow-rate (range): 20-120l/min (5.3-32 gal/min).
• Repeatability: 0.2%.
• Max. operating pressure: 10 bar (145 psi).
• Bursting pressure: 30 bar (435 psi).
• Resolution: 0.1 litre.
• Pulser card type: “Open collector", frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 mA.
