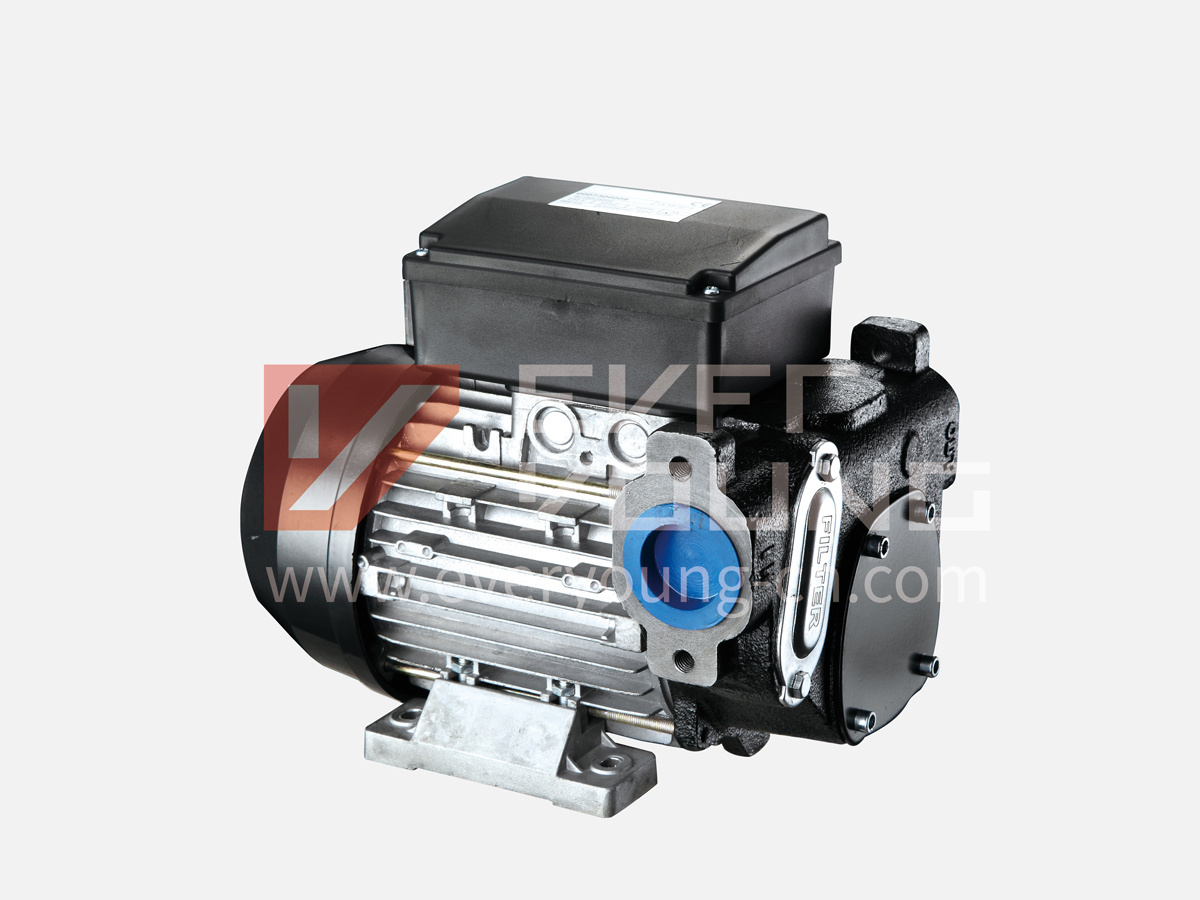

AC fuel transfer pumps
These self-priming rotary vane pumps feature a mechanical seal that guarantees constant reliability, even in low temperatures. Compact, safe and dependable, they can be used for equipping fuel pumps and stationary fuel-transfer installations.
Yoilp1224BT-16
• 60L/MIN,230V/50Hz • 2800RPM • 1"BSP,3BAR • 350W,3A • 7.5KGS • 1/CTN 8.5/7.5KGS 20X36X27CM
- 技术参数
- 详细描述
-
- Commodity name: AC fuel transfer pumps
- Commodity ID: D-B001
- 产品型号: Yoilp1224BT-16
- 参数: • 60L/MIN,230V/50Hz • 2800RPM • 1"BSP,3BAR • 350W,3A • 7.5KGS • 1/CTN 8.5/7.5KGS 20X36X27CM
These self-priming rotary vane pumps feature a mechanical seal that guarantees constant reliability, even in low temperatures. Compact, safe and dependable, they can be used for equipping fuel pumps and stationary fuel-transfer installations.
AC DIESEL PUMP / Technical Features
• Cast-iron pump casing, treated against corrosion and paint-finished.
• Vane pump with sintered steel rotor and acetalic resin blades.
• Mechanical seal.
• Bypass valve built into pump casing.
• In-built 100-micron filter, easily accessible for cleaning.
• Induction motor with aluminium casing.
• Grade of protection: IP 55.
• Continuous running.
AC DIESEL PUMP / Technical Features
• Cast-iron pump casing, treated against corrosion and paint-finished.
• Vane pump with sintered steel rotor and acetalic resin blades.
• Mechanical seal.
• Bypass valve built into pump casing.
• In-built 100-micron filter, easily accessible for cleaning.
• Induction motor with aluminium casing.
• Grade of protection: IP 55.
• Continuous running.
Keywords:
RELEVANT

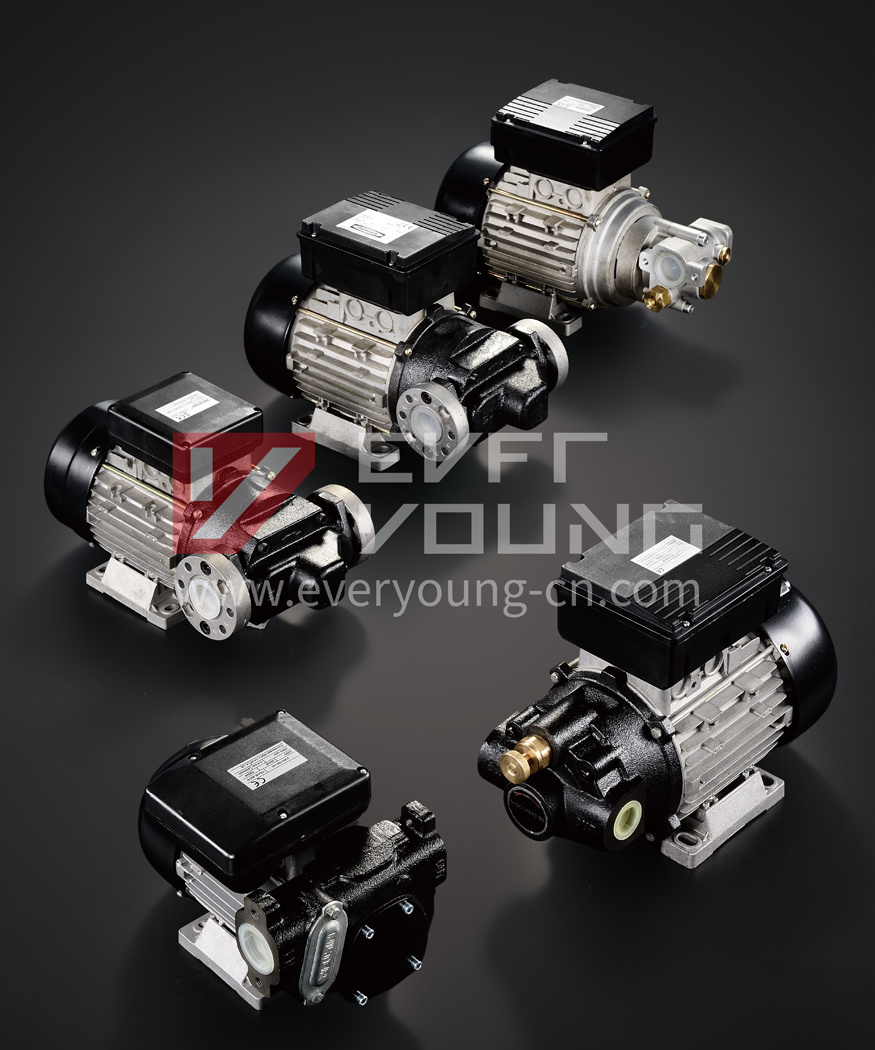

AC PUMPS
Yoilp1224BT-11-L
• Voltage: 220V • Rated Input Power: 600W • Max pump rate:100L/MIN • Inlet/Oulet:BSPT/NPT1"
AC PUMPS
Yoilp1224BT-11-D
• Voltage: 220V • Rated Input Power: 550W • Max pump rate:70L/MIN • Inlet/Oulet:BSPT/NPT1"
AC PUMPS->AC PUMPS
Yoilp1229M-K 220V
• FUEL TRANSFER PUMP • Rated Input Power:750W • Max pump rate: 60L/min • Inlet/Oulet:BSPT/NPT1" • Use for Gasoline,diesel,kerosene
