DC fuel transfer pump kits
Displacement, self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve. Powerful, dependable and economical, they are available with 12 and 24-volt direct current motors.

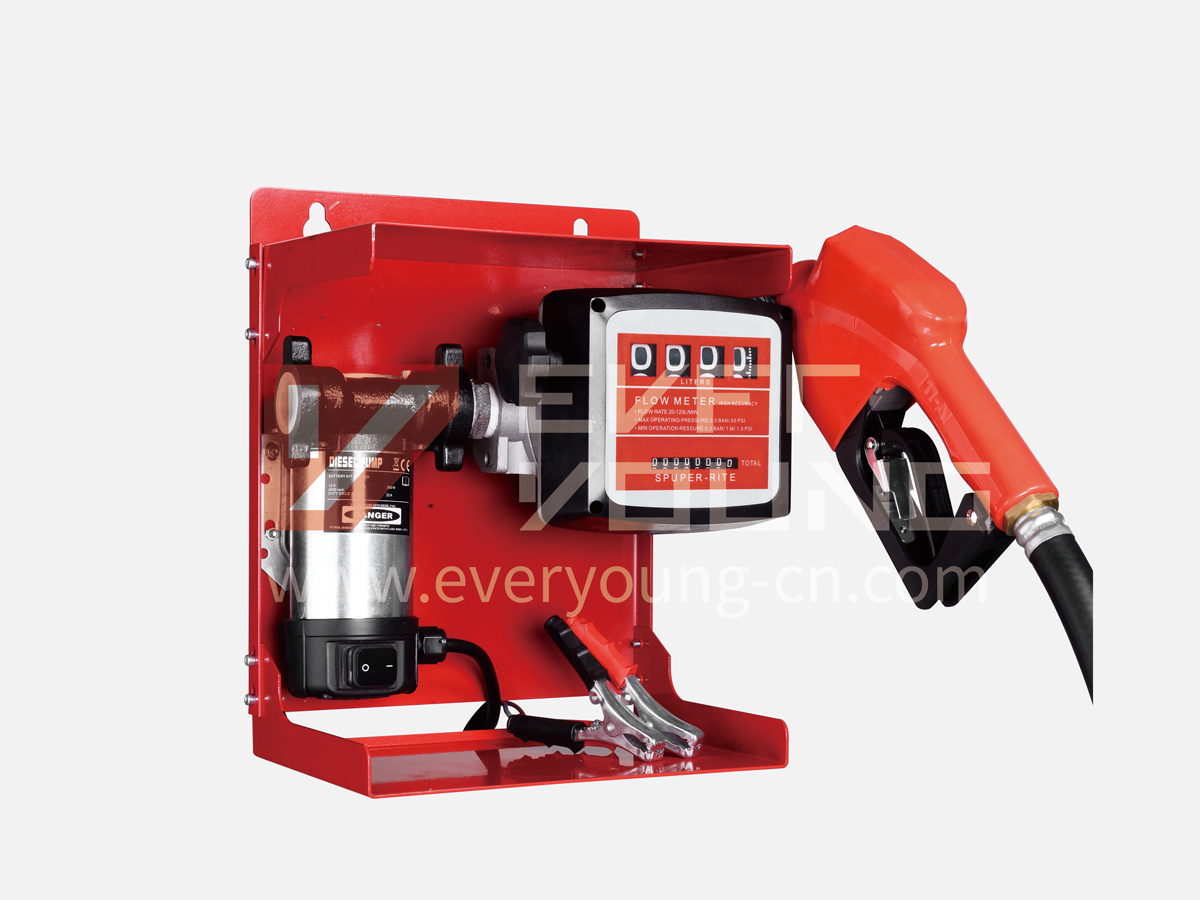

Yoilp1224BBF-67A 12V
• DIESEL PUMP SET PACKING • WITH PLASTIC METER • WITH 4 METERS RUBBER HOSE • WITH METAL GUN • 50L/MIN • DUTY CYCLE:30MIN • 2800RPM • 1/CTN 13/12KGS 39X32X24CM
- 技术参数
- 详细描述
-
- Commodity name: DC fuel transfer pump kits
- Commodity ID: D-C003
- 产品型号: Yoilp1224BBF-67A 12V
- 参数: • DIESEL PUMP SET PACKING • WITH PLASTIC METER • WITH 4 METERS RUBBER HOSE • WITH METAL GUN • 50L/MIN • DUTY CYCLE:30MIN • 2800RPM • 1/CTN 13/12KGS 39X32X24CM
Displacement, self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve. Powerful, dependable and economical, they are available with 12 and 24-volt direct current motors.
DC fuel transfer pumps/Technical specifications
• Cast iron pump body finished with anti-corrosion paint.
• Vane pump with sintered steel rotor and acetal resin vanes.
• By-pass valve incorporated in the pump body.
• Direct current brush motor with permanent magnet stator.
• Motor protection grade IP55.
• Used in intermittent service with 30-minute work cycles.
-
1225B 12V
1225B 24V
• 50L/MIN, 13GPM
• 260W
• 2600RPM
• 1"
• 24A(12V),17A(24V)
• 1.5BAR
• 3.5KGS
• 4/CTN 19/18KGS 36X23X32CM
-
Yoilp1001-1
• 80L/MIN INLET 3/4" OUTLET 15/16"
• 10/CTN 13/12KGS 52X34X40CM
Yoilp1001-1B
• 80L/MIN INLET 3/4" OUTLET 13/16"
• 10/CTN 13/12KGS 52X34X40CM
-
Yoilp1011-13
• ALUMINIUM DIESEL METER
• DIA.OF PIPE:1"
• 4 DIGITAL
• 6/CTN 16/15KGS 53X25X36CM
DC fuel transfer pumps/Technical specifications
• Cast iron pump body finished with anti-corrosion paint.
• Vane pump with sintered steel rotor and acetal resin vanes.
• By-pass valve incorporated in the pump body.
• Direct current brush motor with permanent magnet stator.
• Motor protection grade IP55.
• Used in intermittent service with 30-minute work cycles.
-
1225B 12V
1225B 24V
• 50L/MIN, 13GPM
• 260W
• 2600RPM
• 1"
• 24A(12V),17A(24V)
• 1.5BAR
• 3.5KGS
• 4/CTN 19/18KGS 36X23X32CM -
Yoilp1001-1
• 80L/MIN INLET 3/4" OUTLET 15/16"
• 10/CTN 13/12KGS 52X34X40CM
Yoilp1001-1B
• 80L/MIN INLET 3/4" OUTLET 13/16"
• 10/CTN 13/12KGS 52X34X40CM -
Yoilp1011-13
• ALUMINIUM DIESEL METER
• DIA.OF PIPE:1"
• 4 DIGITAL
• 6/CTN 16/15KGS 53X25X36CM
Keywords:
RELEVANT
DC KITS
Yoilp1224BBA-12V
• DIESEL PUMP SET PACKING • WITH ALUMINIUM DIESEL METER • WITH 4 METERS RUBBER HOSE • WITH AUTOMATIC GUN • 40L/MIN, • 140W • DUTY CYCLE:30MIN • 2800RPM • 1/CTN 13/12KGS 39X32X24CM
DC KITS
Yoilp1224BBF-67C 12V
• DIESEL PUMP SET PACKING • WITH ALUMINIUM DIESEL METER • WITH 4 METERS RUBBER HOSE • WITH METAL GUN • 50L/MIN • DUTY CYCLE:30MIN • 2800RPM • 1/CTN 13/12KGS 39X32X24CM
DC KITS
Yoilp-JYB-40A-12V
• DIESEL PUMP SET PACKING • WITH 4 DIGITAL DIESEL METER • WITH 4 METERS RUBBER HOSE • WITH AUTOMATIC DIESEL GUN • 40L/MIN • DUTY CYCLE:30MIN • 2800RPM • 1/CTN 19/18KGS 44X38.5X36CM
